The last three days of wiring progress. It's is coming along and starting to take shape. Should be finished with everything but the engine stuff this next week. Hope to smoke check it this next week by turning on all the panel mounted equipment, lights, and testing all the switches.
All the panel mounted units are wired. Two groups of wires exiting the right side, the lower extending to the rear are wires going to the VPX, the other bundle at the top exiting forward are Grounds.
The lacing is starting at the panel and working forward. The short colored tubes are for the Pitot (Yellow), AOA (Blue), and Static (Green). They are short dust covers and will be replaced with the actual lines next week.
A shot of the center stack, rear of pic, top is the Audio Panel connectors, middle Comm One connectors, bottom 375 Navigator connectors.
Left side and center stack. The engine ECU in the foreground.

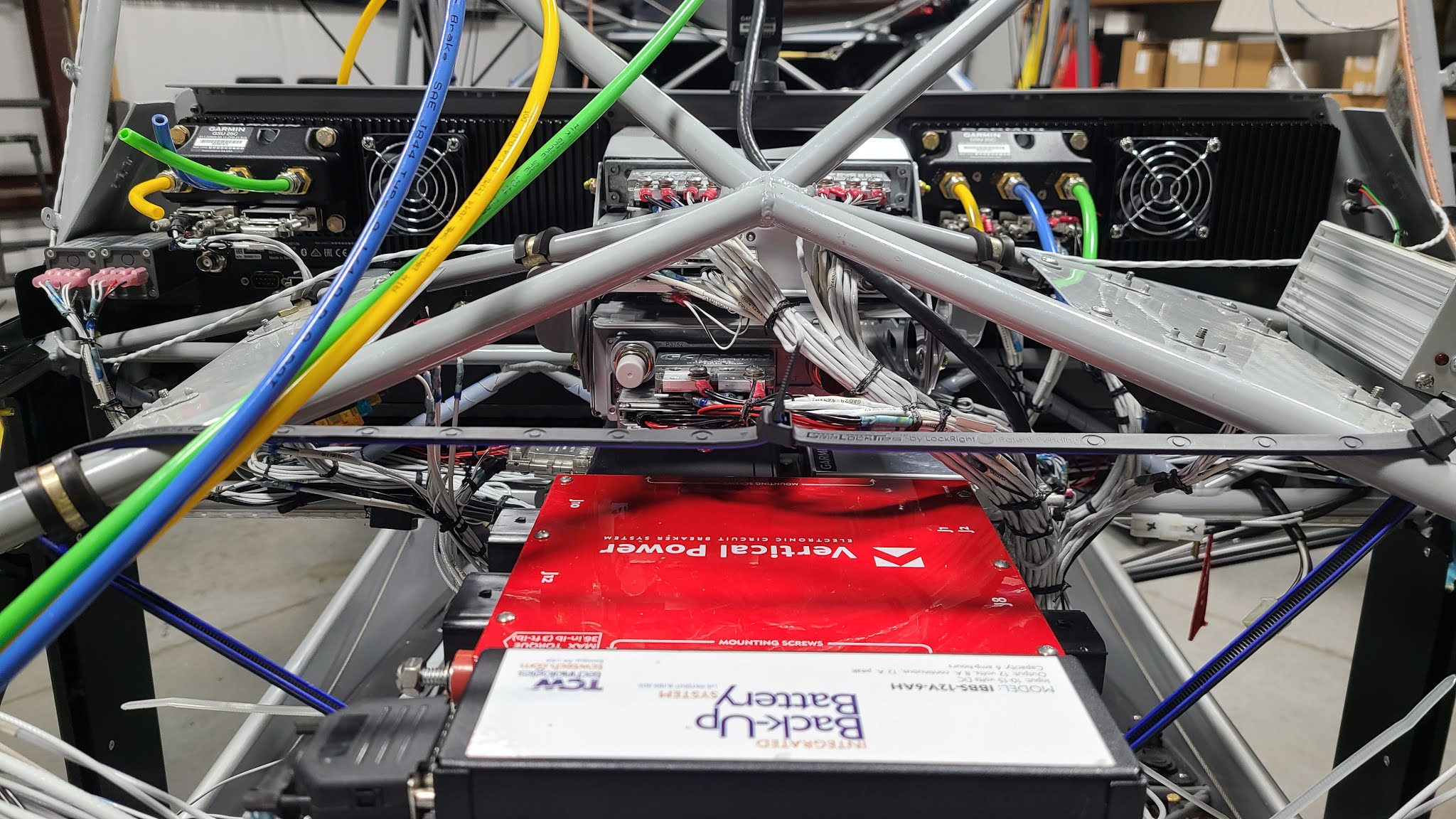

Right side showing the VPX bundle, goes up to the red box at the top of the pic.
Once the remaining wires are terminated all the wiring will be laced up into nice tight bundles.
